Publish-Subscribe Broker

MQTT is a lightweight Pub/Sub protocol widely used for IoT, robots, sensors, and low-power devices.

MQTT implements a topic-based publish/subscribe messaging pattern.

Publish A client sends a PUBLISH packet to the broker containing: Topic name Message payload (binary or text) QoS level (0, 1, or 2) Retain flag (store as last-known-good message) User properties (MQTT 5) The broker receives the message and determines which subscribers should receive it.

Subscribe A client sends a SUBSCRIBE packet specifying: Topic filter Requested QoS level

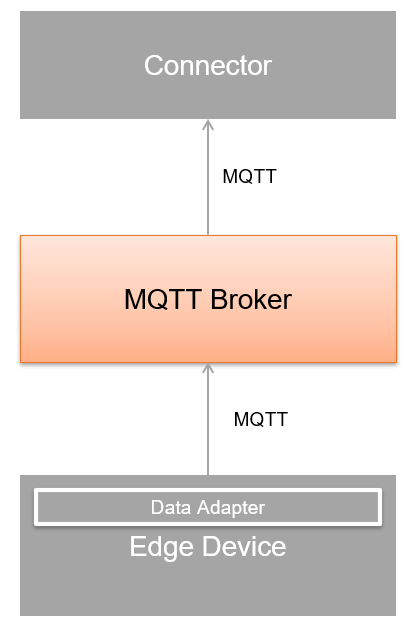

The MQTT broker is the central server responsible for: Managing client connections (TCP, typically over port 1883 or 8883 for TLS) Receiving PUBLISH packets from clients Routing messages based on topic matching Delivering messages to subscribed clients

CMU MFI is currently using EMQX open source MQTT broker for its implementation. EMQX Broker Link for Windows: https://www.emqx.com/en/downloads/broker/v5.3.2
