FANUC ROS1 Interface

The fanuc_ros1 repository is a ROS1 interface for FANUC robot arms, specifically designed to work with the R-30iB+ controller. It provides a framework for motion planning and execution using MoveIt, along with various skills for industrial tasks.

Motion Stack and MoveIt

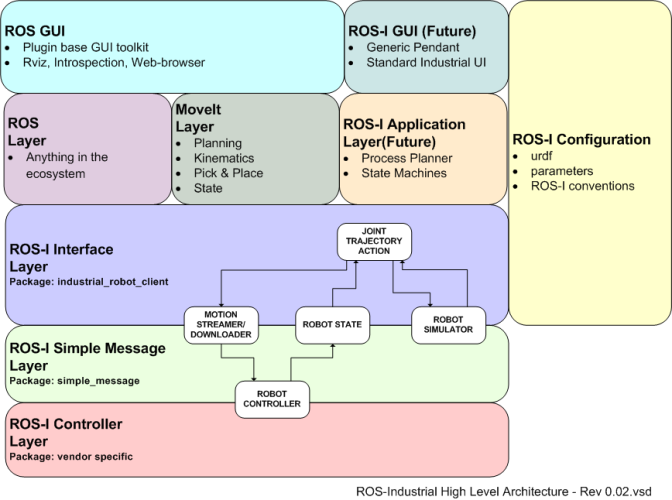

ROS interface uses the ROS-Industrial stack to plan and execute trajectory. The figure below represents the stack. Details and tutorials to setup the driver and interface can be found here.

MotoROS Source: http://wiki.ros.org/Industrial

  • ROS-I Controller Layer is setup at the robot controller (R-30iB+). Details \



  • ROS-I Interface Layer
    fanuc_lrmate200id_support
    Open-source community has a support package for many industrial robots, including LR Mate 200iD.

  • MoveIt Layer
    fanuc_lrmate200id7l_moveit_config
    We developed moveit configuration package for LR Mate 200iD robots which is used for trajectory planning.

  • Application Layer
    fc_tasks
    We developed a set of services and actions to perform various industrial tasks using the robot arm. These allow to develop custom application using the robot arm without worrying about the underlying motion planning and execution.

Tutorial 1 - Using scripts to test actions and services

This repository comes with example scripts to test actions and services in ‘fc_tasks/scripts’. These are outlined below :

TODO: Add sim GIF images to the tests below to show expected output.

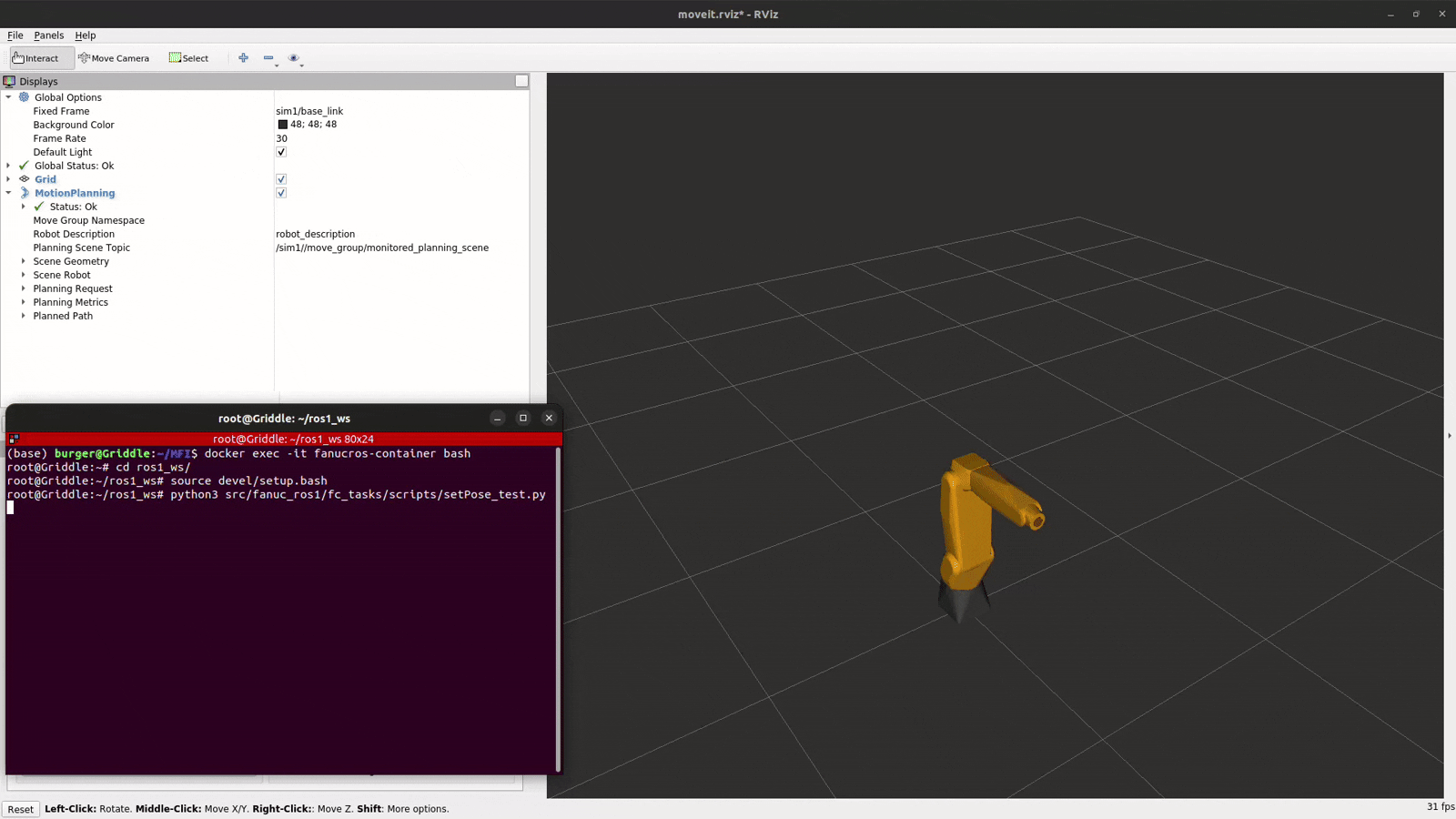

SetPose Service Test

The setPose_test.py script contains an example pose to test the /fc_set_pose service. Modify this as required to test. It’s a good idea to execute the same pose multiple times to ensure that all frames are calibrated correctly.

python3 ~/ros1_ws/src/fc_tasks/scripts/setPose_test.py

SetPose

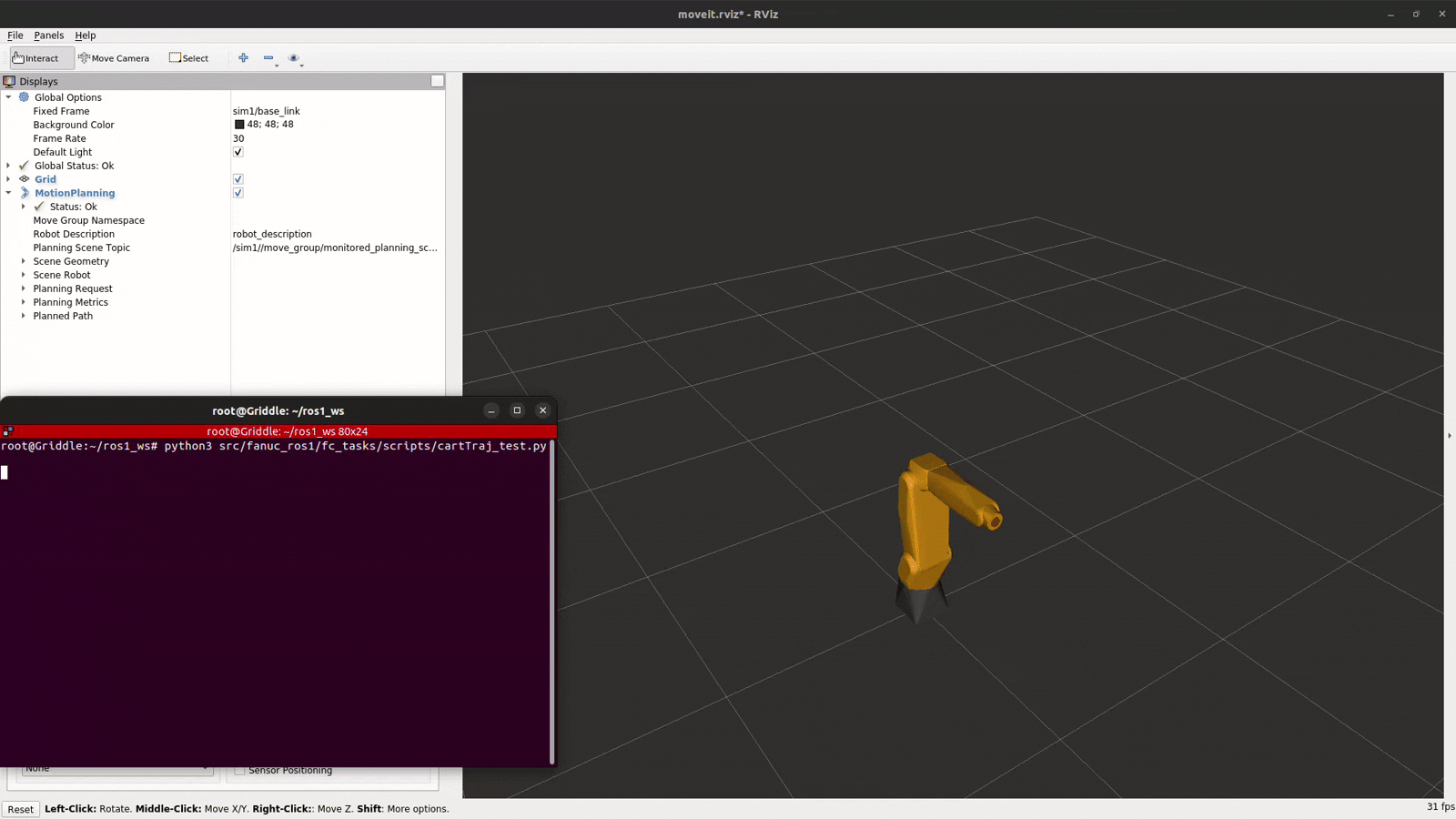

ExecuteCartesianTrajectory Service Test

The cartTraj_test.py script contains a trajectory with 2 waypoints to test the /fc_execute_cartesian_trajectory service. Modify this as required to test.

python3 ~/ros1_ws/src/fc_tasks/scripts/cartTraj_test.py

CartTraj

GoToPose Action Test

The goToPoseAction_test.py script contains an example pose to test the /fc_go_to_pose action server.

python3 ~/ros1_ws/src/fc_tasks/scripts/goToPoseAction_test.py

Same output as SetPose Service Test.

ExecuteCartesianTrajectory Action Test

The execTrajAction_test.py contains a trajectory with 2 waypoints to test the /fc_execute_cartesian_trajectory_action action server.

python3 ~/ros1_ws/src/fc_tasks/scripts/execTrajAction_test.py

Same output as ExecuteCartesianTrajectory Service Test.

Tutorial 2 - Configuring the Interface for another Fanuc Robot Arm

fanuc_ros1 can be used for any FANUC robot arm with a R-30iB+ controller. This tutorial explains how to configure the interface for a different FANUC robot arm, such as the LR Mate 200iD/7L.

Note

This tutorial assumes that the new package is built in a docker container with the same image as fanuc_ros1. If using a different environment, all dependencies must be satisfied manually as Noetic is now EOL. Follow installations

Making changes

  1. Find the required support package and moveit config for the robot arm at fanuc.

  2. Change the package.xml dependencies of fc_tasks and fc_launch to match the new moveit config package (fanuc_lrmate200id7l_moveit_config).

  3. Use the urdf file from the downloaded support package to find DH parameters of the new robot arm. Update the .json file in ‘/fc_tasks/config’ with the new values.

  4. In ‘fc_launch/launch/moveit.launch’, change the ‘fanuc_lrmate200id7l_moveit_config’ to the new moveit config package and update the ‘robot_ip’.

  5. Inside the moveit_config package, add the namespaced controllers to the ‘config/controllers.yaml’ file. Refer ‘fanuc_lrmate200id7l_moveit_config’.

  6. Go through the moveit_config launch and config files to see if any file are missing/have different structures due to software updates.

Note

Most common differences are found in ‘move_group.launch’, ‘moveit_planning_execution.launch’ and ‘trajectory_execution.launch.xml’. Check all namespaces match this repository

Testing changes

  1. Use the fanuc tutorials to ensure that connection with the robot is established and the required drivers are running.

  2. Ensure the moveit_config works standalone, before testing fc_launch. Use the following commands:

roslaunch fanuc_lrmate200id7l_moveit_config moveit_planning_execution.launch sim:=true
roslaunch fanuc_lrmate200id7l_moveit_config moveit_planning_execution.launch sim:=false robot_ip:=<robot_ip>

  1. Check fc_tasks runs in simulation by keeping sim:=true with no namespace.

roslaunch fc_launch moveit.launch sim:=true namespace:=''

  1. Test with a namespace.

roslaunch fc_launch moveit.launch sim:=true namespace:='sim1'

TODO: Add an image or GIF

  1. Test on a real robot.

Warning

  • Ensure the robot is in a safe state and the environment is clear of obstacles before executing commands on a real robot.

  • Keep e-stop button ready to stop the robot in case of any unexpected behavior.

roslaunch fc_launch moveit.launch sim:=false namespace:='real'

  1. Check ‘plan and execute’ works in RViz by setting a ‘random valid’ goal.

  2. Check all ROS services and actions work. An example is shown below:

rosservice call /sim1/fc_get_pose sim1/base_link

Note

This tutorial can be adapted to non-Fanuc robot arms. However, problems may occur due to version difference of support and moveit configs. It is recommended to use this interface repository as a reference and build the new package from the beginning.
