Vision System - Installation

vision-setup

Hardware

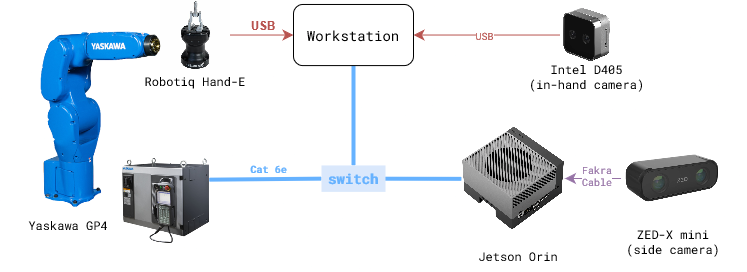

The figure below shows the experiment setup during the project period. The list of hardware components can be found here in the BOM sheet.

vision-system

Note: Bolt pattern of GP4 end effector and Robotiq HandE is different. So, a custom adapter plate will be needed to mount the Robotiq HandE on GP4.

Software

There are two levels of software installation required for the vision system.

1. Device Interfaces
This includes the installation of the software required to interface with the hardware components like robots, cameras, grippers, etc.

Relevant repositories:
motoman_ros1 zed-ros-wrapper realsense-ros1-docker rosbridge_suite

2. Vision System
This includes the installation of the software required to run the vision system which involves teach, learn and execute tasks described in the overview section.

Relevant repository:
rtc_vision_toolbox

Installation Steps

Step 1: Device Interfaces

  • Follow the installation instructions in the respective repositories.

  • Make sure the devices are connected and working properly.

  • Pre-requisite for the vision system is two cameras, one robot arm, and one gripper.

Note: Notice that the relevant repositories in the device interfaces are all ROS packages. If using ROS-wrapper device interface, then they need to be started seperately. Otherwise, direct device SDK based interfaces can be directly implemented in camera/ and robot/ modules of the vision system. For example, ‘Orbbec’ camera SDK interface is directly implemented in camera/orbbec module and ‘Robotiq’ gripper SDK interface is directly implemented in robot/robotiq module.

Step 2: Systems Check

  • Setup the python virtual environment and install the required packages.

    $ python3 -m venv venv
$ source venv/bin/activate
$ pip install -e .

  • Run the test.py script in the camera/ and robot/ modules to check the device interfaces.

  • If all tests pass, then the devices are ready for the vision system.

  • Use the venv for all the following steps. source venv/bin/activate

Step 3: Device Setup: Camera-Robot Calibration

  • There are two cameras to do the calibration: one fixed to ground (eye-on-base), and the other mounted on the robot arm (eye-on-arm).

  • eye-on-base:

    • Mount the camera on a fixed position.

    • Print and fix an ArUco marker on the robot arm end effector.

    • Review the script scripts/robot_camera_calibration.py to make sure it uses the right device interfaces. Make sure camera, robot, and marker objects are rightly initialized.

    • Run the script to calibrate the camera and robot arm.

      # Run the calibration script
$ python scripts/robot_camera_calibration.py

    • Calibration data and results will be saved in scripts directory. Move them to a desired directory, like data/calibration/.

  • eye-on-arm:

    • Pre-requisite: one calibrated camera on base.

    • Mount the camera on a the robot arm

    • Print and put the AruCo marker in the scene such that both cameras (scene-camera and in-hand camera) can see the marker.

    • Review the script scripts/gripper_camera_calibration.py to make sure it uses the right device interfaces. Make sure scene_camera, inhand_camera, robot, and marker objects are rightly initialized.

    • Run the script to calibrate the camera and robot arm.

      # Run the calibration script
$ python scripts/gripper_camera_calibration.py

    • Calibration data and results will be saved in scripts directory. Move them to a desired directory, like data/calibration/.

Step 4: Create Config Files

  • Update the place_object.yaml config file with your setup parameters.

    # Create directory for training data to be stored
$ mkdir -p data/demonstrations/<dd-mm>

# Copy a config file from demo-example
$ cp demo-example/demonstrations/08-14-wp/place_object.yaml data/demonstrations/<dd-mm>/

Step 5: TEACH - Collect training data

  • Use collect_demonstrations() method in TeachPlace class to collect training data. place_teach.py script can be used to run the teach script.

    # Activate the virtual environment, if not already done.
$ source venv/bin/activate

# Run the teach script
$ python scripts/place_teach.py --config ../data/demonstrations/<dd-mm>/place_object.yaml

    A bash script can also be created to run the teach script for different connectors. See *.sh files in the scripts/ directory for examples.

  • Data is collected in the data/demonstrations/<dd-mm> directory. Review the depth images of action and anchor objects to make sure the data is collected correctly. Adjust the parameters in training section in place_object.yaml file to get good quality data.

  • Use scripts/view_ply.py script to visualize the point cloud data.

Step 6: LEARN - Train the model

  • Data Preparation. prepare_data() method in LearnPlace class is used to prepare the training data. place_learn.py script shows how to execute the method.
    Review training parameter in place_object.yaml file to make sure the data is prepared correctly.

    # Activate the virtual environment, if not already done.
$ source venv/bin/activate

# Run the learn script
$ python scripts/place_learn.py --config ../data/demonstrations/<dd-mm>/place_object.yaml

  • Training the Model.

    • Review instructions in model/README.md to configure training parameters.

    • Run the training script.

    # (optional) Run the model training in a terminal multiplexer like tmux or screen.
tmux new -s vision-training

# Activate the virtual environment, if not already done.
$ source venv/bin/activate

# Run the training script
$ cd model/taxpose
$ CUDA_VISIBLE_DEVICES=1 python scripts/train_residual_flow.py --config-name <path/to/taxpose/training/config>

    • Training will take a few hours to complete. Monitor the training progress on WANDB dashboard.

    • Update the training.model_config parameter in the place_object.yaml file with the <path/to/taxpose/training/config>

    • Once the training is complete, save the location of the trained model in the models/taxpose/configs/checkpoints directory.

Step 7: EXECUTE - Run the vision system

  • Review the execution parameter in the place_object.yaml file.

  • Use execute() method in ExecutePlace class to run the vision system. place_execute.py script can be used to run the execute script.

    # Activate the virtual environment, if not already done.
$ source venv/bin/activate

# Run the execute script
$ python scripts/place_execute.py --config ../data/demonstrations/<dd-mm>/place_object.yaml

Step 8: Validate and Retrain:

  • To validate the system use validate_execute() method in ExecutePlace class.

  • Run it a few times to get a sample set of data.

  • Use the notebooks/visualize_pcd.ipynb notebook to calculate the error and visualize the point cloud data for the action and anchor objects.

  • If the error is high, then retrain the model by repeating steps 5-6-7.
